• Product Details

Features

  • Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
  • Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
  • SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
  • All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.
  • MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
  • LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
  • Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
  • 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
  • Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
  • Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.

Specifications

  • Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
  • Audio: 6.5 MHz Mono
  • Protocol:smart audio2.0
  • Antenna Connector: MMCX
  • Input Voltage: 7 to 28 volts (2-6S LiPo)
  • Dimensions: 30x26mm
  • Mounting Holes: Standard 20mm square to center of holes (M3)
  • Weight: 3.6g

Package Includes:

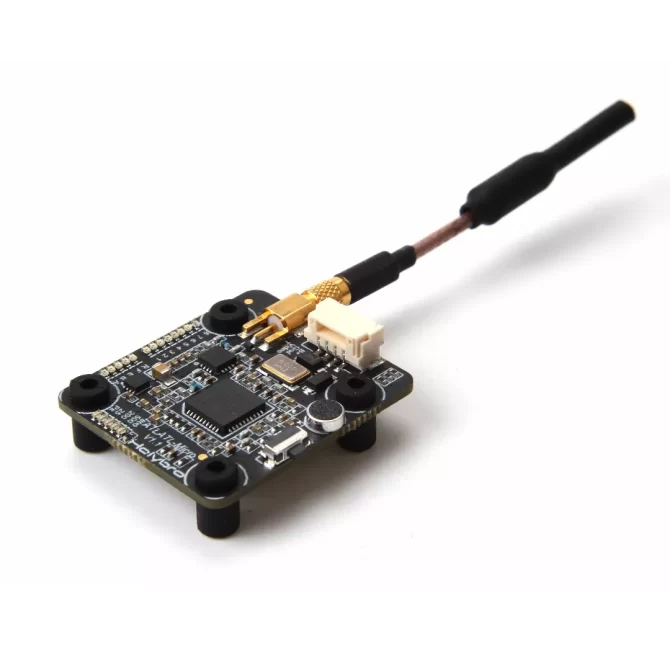

VTx Board *1
80mm SMA–MMCX Cable *1
60mm Antenna *1
150mm 4pin JST GH wire *1
M2 Anti-Vibration Silicone Grommet Insert *4

Manual:

Holybro_Atlatl_HV_micro_Manual

Download:

ATLATL HV V2-VTx table
