- Product Details
Description

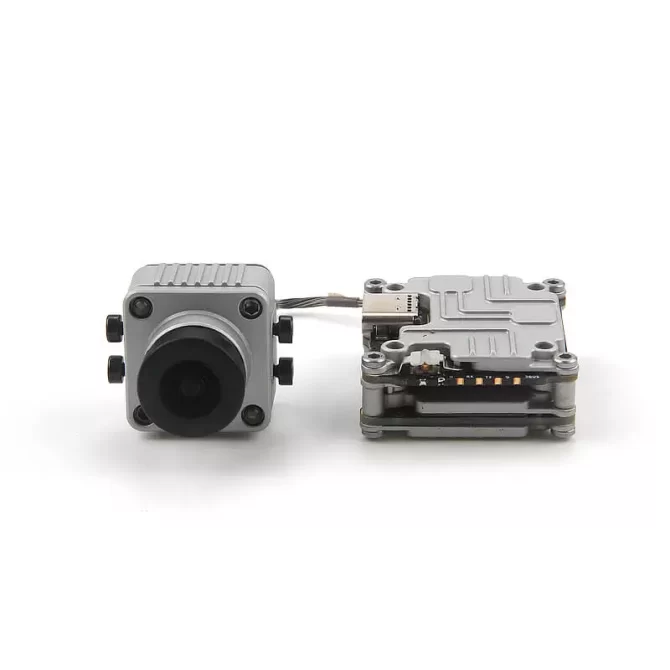

Caddx Vista Digital HD System for DJI HD FPV Air Unit（Lite）
Caddx has worked with DJI to release a new generation of digital HD FPV transmitters. The Vista was fully authorized by DJI and compatible with their HD FPV System. Even better, the Caddx Vista was engineered to be lighter and smaller than the DJI Air Unit Module and also comes with mounting holes for easier installation onto your quad!
Upgrade your Vista HD system with a smaller and lighter antenna!
Specifications
- Dimensions
- Module: 30.45 x 29 x 13mm
- Camera: 27.4 x 21.1 x 20.1mm
- Weight: 29g (inc. camera); Module: 19g
- Antenna Connector: u.FL
- Operating Frequency: 5.725-5.85GHz
- Transmitter Power (EIRP)
- FCC/SRRC/MIC: <20dBm
- CE: <14dBm
- I/O Interface: USB-C, IPEX, 3-in-1 Port
- Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
- High-Quality Mode (720p 60fps): 30-40ms
- Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
- Input Power: 7.4-26.4v
DJI Camera
- Sensor: 1/3.2″ CMOS
- Effective Pixel: 4M
- Lens: 2.1mm f/2.1
- Shutter: Rolling Shutter
- ISO: 100-25600
- FOV: 150(D);122(H);93(V)
Manual:
Caddx Vista Kit User Manual
Caddx Vista Kit User Manual
