- Product Details

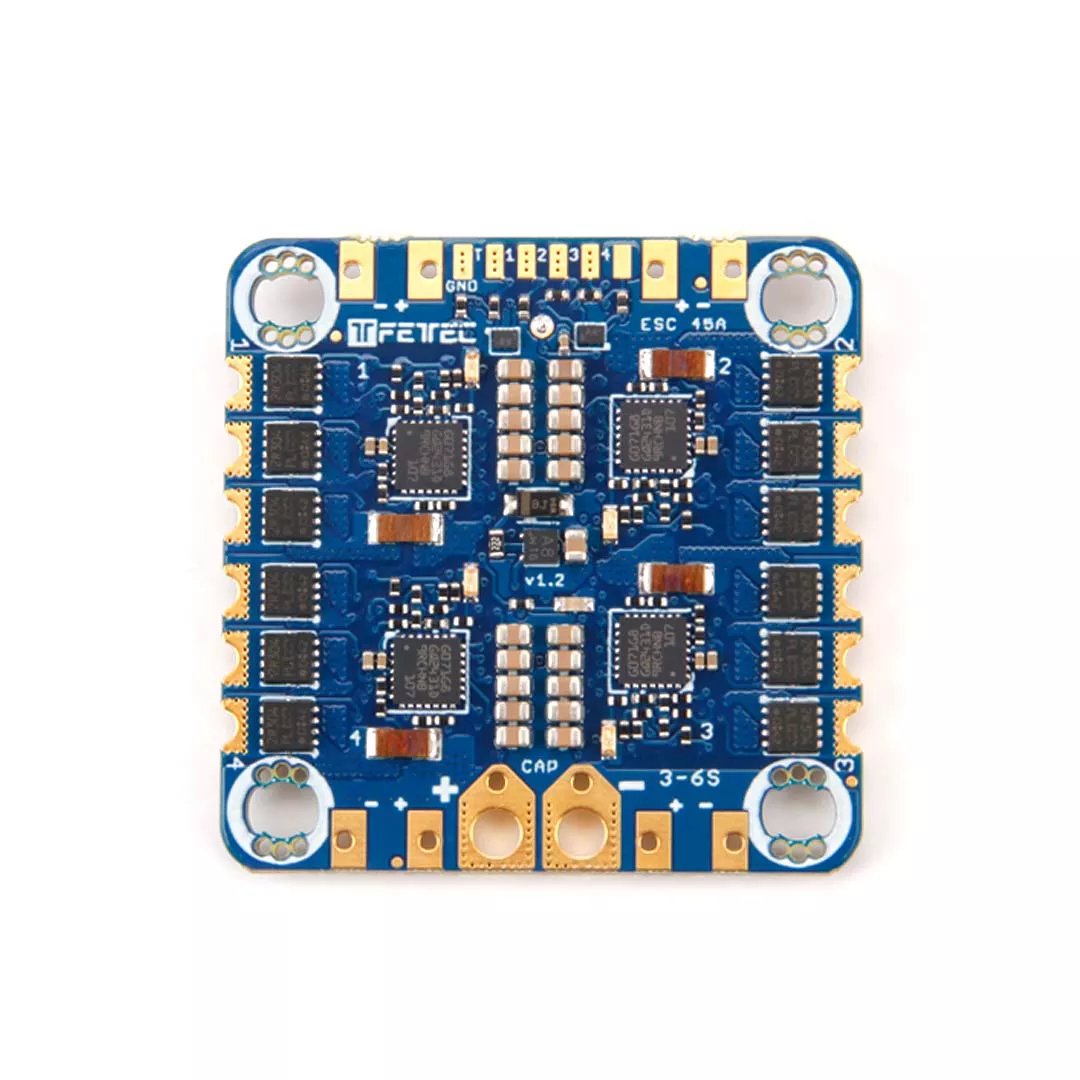

The FETtec 45A 3-6S ESC is a powerful 4-in-1 electronic speed controller that has a mounting pattern of 30.5×30.5 and supports Dshot 300-2400, OneShot 42/125, PWM, Crossfire, SBUS, and other features!
Specifications
-
Active current limiting @ 45A
-
Input voltage: 3S-6S
-
High-quality 40V MOSFETs
-
STM32G071 @ 64MHz
-
128 kHz Motor PWM
-
Full sine wave control
-
Soldering holes for up to 5 additional capacitors
-
KISS FC Passthrough
-
Betaflight Passthrough (available in 4.1)
-
Automatic input signal detection:
-
Dshot 300-2400
-
PWM
-
OneShot 42/125
-
OneWire BUS with up to 8kHz loop time (one cable for all Motorsignals and Telemetry)
-
In development: Crossfire, SBUS
-
-
38 mm x 38 mm
-
Mounting hole: 30.5 mm x 30.5 mm, M3 expandable to M4
PINMAP
Diagram
Includes
-
1 x FETtec ESC 4in1 45A
-
1 x Capacitor 50V, ESC < 1ohm (477CKE050M)
-
1 x JST-SH 8 Pin Cable
