- Product Details
Updated:
New Rev1.7
Recommending method: https://gui.fettec.net/FC/index.html
Description:

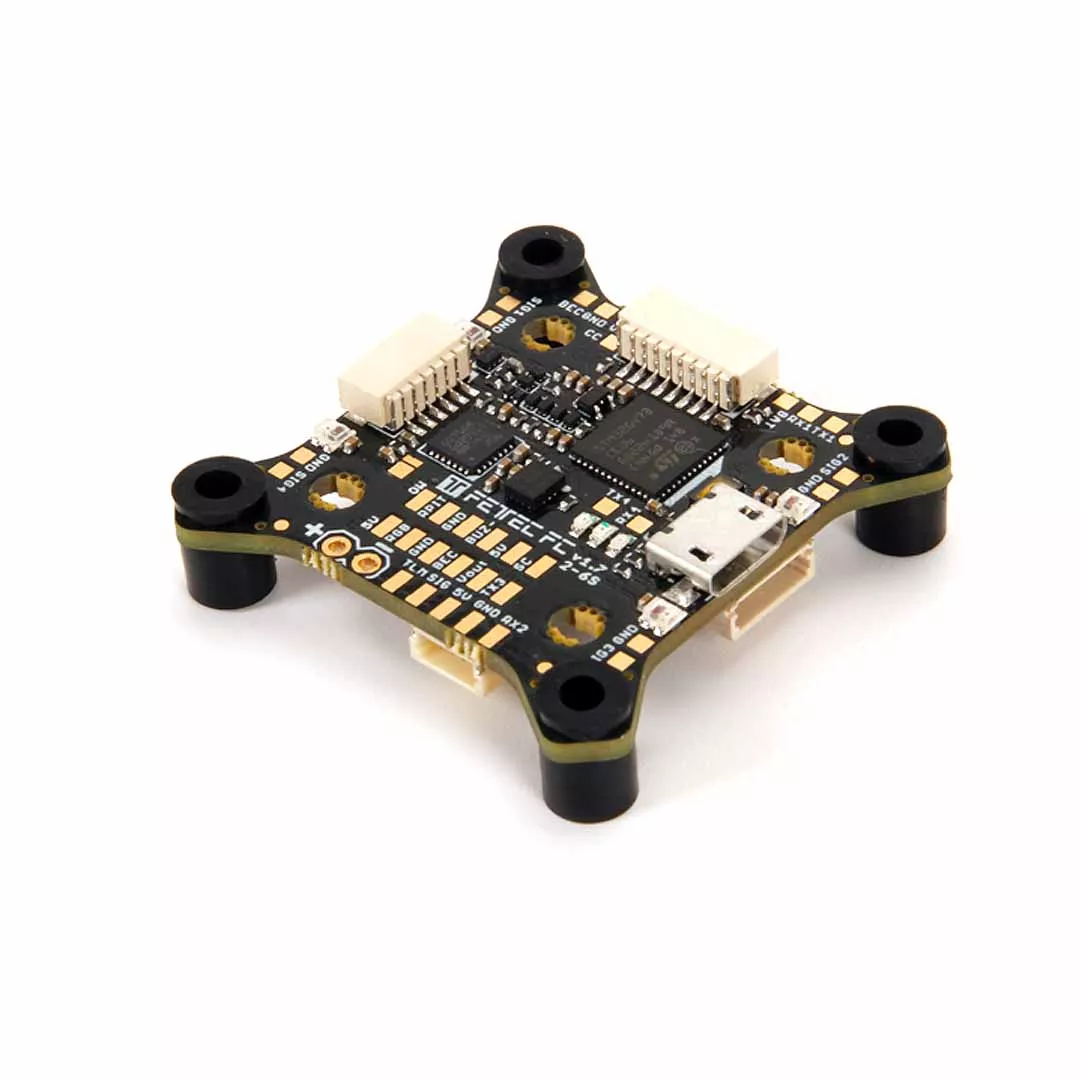

The Holybro FETtec FC G4 features the latest STM32 G4 MCU with math accelerator for the ultimate in flight performance, onboard OSD for KISS flight tuning, 2 dedicated BECs for 5V and 16V switchable power, DSHOT2400 outputs for support of up to 8 motors, and dual 20×20 and 30×30 mounting holes.
Specifications:
- Latest STM32G4 Processor
- 170Mhz + Math accelerator
- ICM Gyro (Updated)
- Supply voltage 6-27V (2S-6S Lipo)
- 2x dedicated onboard BEC (max. 1000mA each) (Updated)
- 5V BEC for RX
- 5V/16V BEC for VTX (switchable and real Pit*)
- 2x 8 pin connector for solder free ESC connection
- Connector 1: ESC signal 1-4, telemetry, VCC, GND
- Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND
- 1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems
- real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
- 2x 6 pin connectors for serials
- RX1, TX1, 3.3V, VCC, 5V, GND
- RX3, VCS/TX3, RGB LED, VCC, 5V, GND
- 1x 4 pin connector for receiver
- Signal, TLM, 5V, GND
- 5 UART serials
- UART 1 free
- UART 2 used for Receiver
- UART 3 free
- UART 4 used for onboard OSD, can be set free
- UART 5 used for ESCs / TLM / Onewire
- 4 ESC solder pads (Signal/GND) in each corner
- Buzzer pads
- 4 tiny RGB LEDs (selectable color)
- Supported ESC protocols
- PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
- FETtec KISS firmware
- Onboard OSD
- Graphic OSD (STM32)
- Full KISS Tuning
- Filter (PIDs, Rates, Settings)
- LED control (RGB LED, Racewire)
- VTX
- Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)
- KISS GPS support + live map
- Custom graphic pilot logo
- Stick overlay
- Custom layout
- can be deactivated for usage of digital systems
- Connector type: JST-SH-1mm
PINMAP
Includes:
– 1X FETtec KISS FC G4
– 1X 8 Pin SH1.0 Cable
– 1X 6 Pin SH1.0 Cable
– 4X M3 Anti-Vibration Silicone Grommet Insert
