- Product Details
Features
FC:
- KISS FC firmware
- F3 Processor (STM32F303CCT6 @ 72MHz (MPU6000))
- Supply voltage 6-18V (2S-4S Lipo voltage)
- Dedicated onboard 5V BEC (max 1A)
ESC:
- Active current limiting @ 15A
- Input voltage: 2S-4S
- High quality 30V MOSFETs
• STM32G071 @ 64MHz
- 128 kHz Motor PWM
- Automatic input signal detection
- Dshot 300-2400
- PWM
- OneShot42/125
OSD:
- Graphic OSD (STM32)
- Full KISS Tuning
- Filter (PIDs, Rates, Settings)
- LED control (RGB LED, Racewire)
- VTX
- Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)
- KISS GPS support + live map
- Custom graphic pilot logo
- Stick overlay
- Custom layout
The FETtec Mini AIO 15A works with KISS/FETtec FC firmware version 1.3RC45Y or later !
Dimensions
Size: 29 x 29 mm
Mounting: 25,5 x 25,5 mm
Weight: 3.6 gSafety warning: Remove propellers before flashing and configuration
PIN MAP
Package Includes:
FC board *1
M2 Anti-Vibration Silicone Grommet Insert *4Manual:

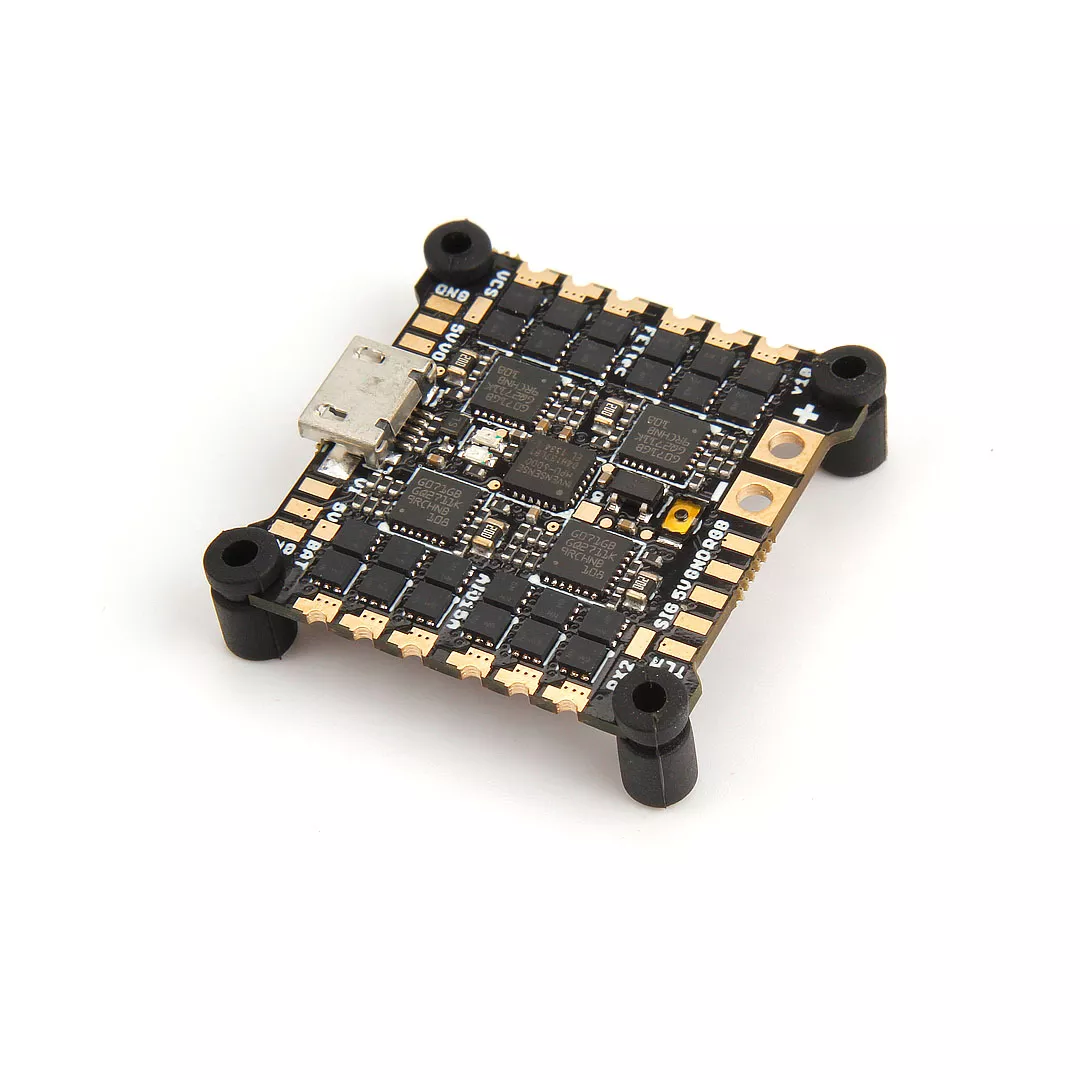

Holybro FETtec Mini AIO 15A
$130.26
(In stock)
Full FETtec AIO with KISS FC Firmware / 4 ESCs 15A / 2-4s / Graphical OSD with full KISS tuning
In stock
