- Product Details

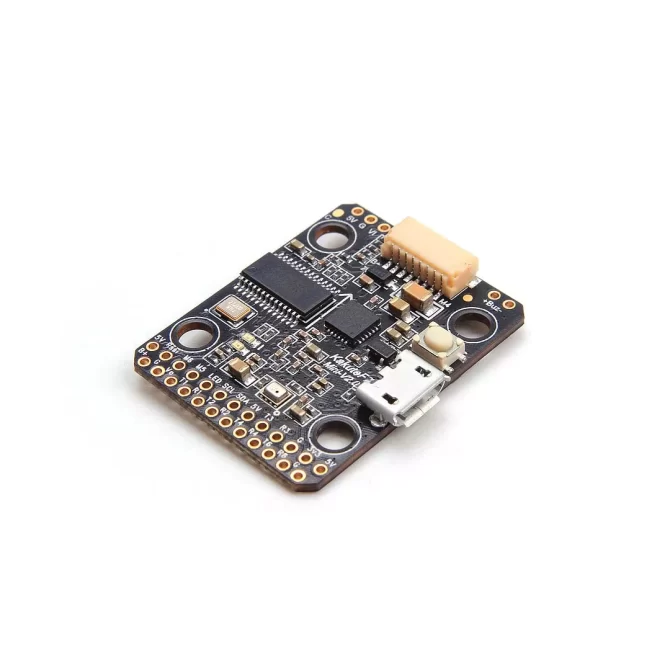

Kakute F7 mini V2
B+ pad available on KakuteF7 mini V2, with IMU upgraded into MPU6000
Specifications:
- MCU: STM32F745VGH6 32-bit processor,216MHz, 320Kbytes RAM, 1Mbytes Flash
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 5.5 hardware UARTS (UART1,2,3,4,6,7)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 1.0A max
- 3.3V Power Out: 0.2A max
- Dimensions: 33x26x6mm
- Mounting Holes: Standard 20mm square to center of holes
- Weight: 4g
Pinout Diagram:
Package Includes:
FC board *1
M3 Rubber rings *4
JST SH 8pin 150mm cable*1
Manual:
Ardupilot Firmware description
https://ardupilot.org/copter/docs/common-holybro-kakutef7mini.html
