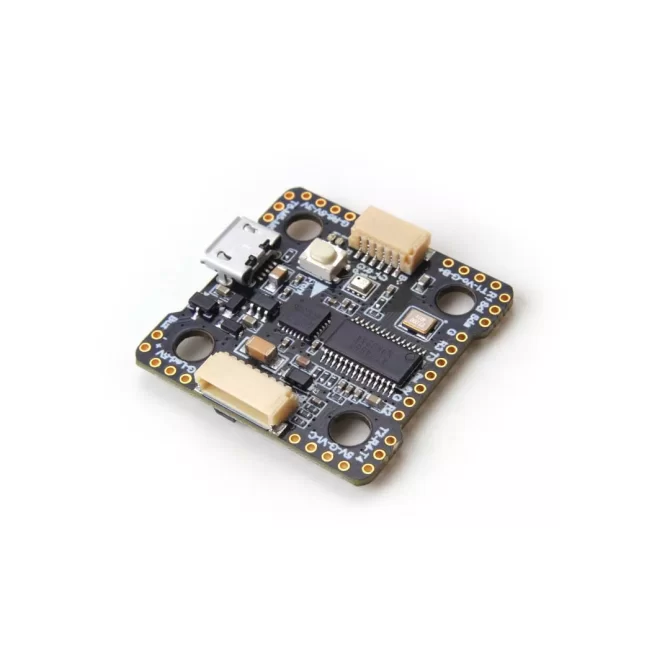

Kakute F7 mini V3
Specifications:
- MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 5hardware UARTS (UART1,2,3,4,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 1.0A max
- 3.3V Power Out: 0.2A max
- Dimensions: 30x30mm
- Mounting Holes: Standard 20mm square to center of holes
- Weight: 4g
Pinout Diagram:
Package Includes:
FC board *1
M3 Anti-Vibration Silicone Grommet Insert *4
JST SH 8pin 150mm cable*1
JST SH 6pin 150mm cable*1 ( The cable that goes to the CADDX Vista Air Unit is included.)
JST SH 6pin to GH 8pin 150mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
JST SH 6pin to GH 8pin 80mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
