Holybro kopis cinematic X8 is a powerful and heavy-duty model designed for professionals. With a full carbon fiber frame which provides a good shock absorption performance, Kopis Cinematic X8 offers a perfect platform with adjustable installation angle available from 0 to 25 °. for both SLR and HD cameras such as Comodo; zcam-e2; Sony a7s3 and Panasonic S5, etc. With redundant configurations of ESC and motor supported, best performance and security are both ensured. DJI FPV air unit digital VTx system installation seat has been reserved.

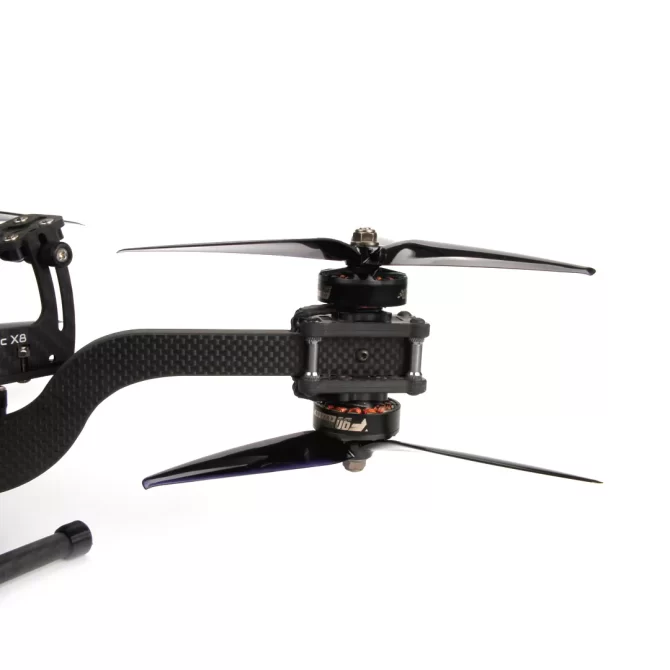

Two pieces of 5mm carbon fiber arms provide reliable structural support for this powerful quad. We also have new vesion Holybro KAKUTE F7 V1.5, KAKUTE F7 HDV,KAKUTE F7 Mini V3 which are compatible with X8.
Features:
- Propeller: Gemfan 7040 7 Inch 3-Blade Propellers
- Motor: T-Motor F90 KV1300 Motors
- Arm: 16mm wide x 10mm thick (with 5mm thick carbon fiber boards overlaid)
- Landing gear: TPU bracket combined with 10 mm carbon fiber tube
- Compatible with DJI Air Unit & Caddx Vista HD Digital System
- Compatible with multiple mounting holes: 30.5×30.5mm & 20x20mm
- Professional camera installation supported: Komodo, ZCAM, BMPCC, etc
- Camera platform shock absorption structure with 10 silicone damping balls
- Spacing between top and bottom plates: 22mm
- Camera platform elevation: 0 ~ 25 ° Adjustable
- Wheelbase: 396mm
- Weight: 1124g
- Frame weight: 640g
Recommended equipments：
FC：KAKUTE H7
ESC：Tekko32 F4 4in1 50A ESC / Tekko32 F4 Metal 4in1 65A ESC
VTx：DJI FPV Air Unit / CADDX Vista Kit
Battery Recommendation: 6s 5000mAh
Payload Capacity: 1.5kg
Flight Time: 5 minutes (with 1.5kg payload)
11 minutes (without payload)
Includes：
1x Kopis Cinematic x8 Frame Kit
8x T-motor F90 KV1300 Motors (Optional)
12x Gemfan 7040 7 Inch 3-Blade Propeller (Optional)
Download
Kopis_Cinematic X8_Overview
Kopis_Cinematic_X8_Assembly_Guide
3D Print:
Kopis_Cinematic_X8_3D_Print_STL_Files.rar
Spare Parts-Kopis Cinematic X8
