Features
- Flight Controller & ESC:
- Holybro-FETtec Mini AIO 15A
- KISS FC Firmware
- Caddx Polar Vista Kit Digital HD FPV system (Optional)
- Motor: F1404 KV3800
- Propeller: Gemfan D63-3B
- Frame: 3mm 3k carbon fiber
- Receiver: TBS Crossfire Nano (Optional)
- Battery plug: XT30
- Wheelbase: 105.5mm
- Weight: 155.2g(Without Battery)
- Take-off Weight: 249g (4s 850mah Lipo)
- Recommend battery (Not Included): 550~850mah 4s
Holybro-FETtec Mini AIO Specifications
FC:
- KISS FC firmware
- F3 Processor (STM32F303CCT6 @ 72MHz (MPU6000))
- Supply voltage 6-18V (2S-4S Lipo voltage)
- Dedicated onboard 5V BEC (max 1A)
ESC:
- Active current limiting @ 15A
- Input voltage: 2S-4S
- High quality 30V MOSFETs
- STM32G071 @ 64MHz
- 128 kHz Motor PWM
- Automatic input signal detection
- Dshot 300-2400
- PWM
- OneShot42/125
OSD:
- Graphic OSD (STM32)
- Full KISS Tuning
- Filter (PIDs, Rates, Settings)
- LED control (RGB LED, Racewire)
- VTX
- Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)
- KISS GPS support + live map
- Custom graphic pilot logo
- Stick overlay
- Custom layout
The FETtec Mini AIO 15A works with KISS/FETtec FC firmware version 1.3RC45Y or later
Includes:

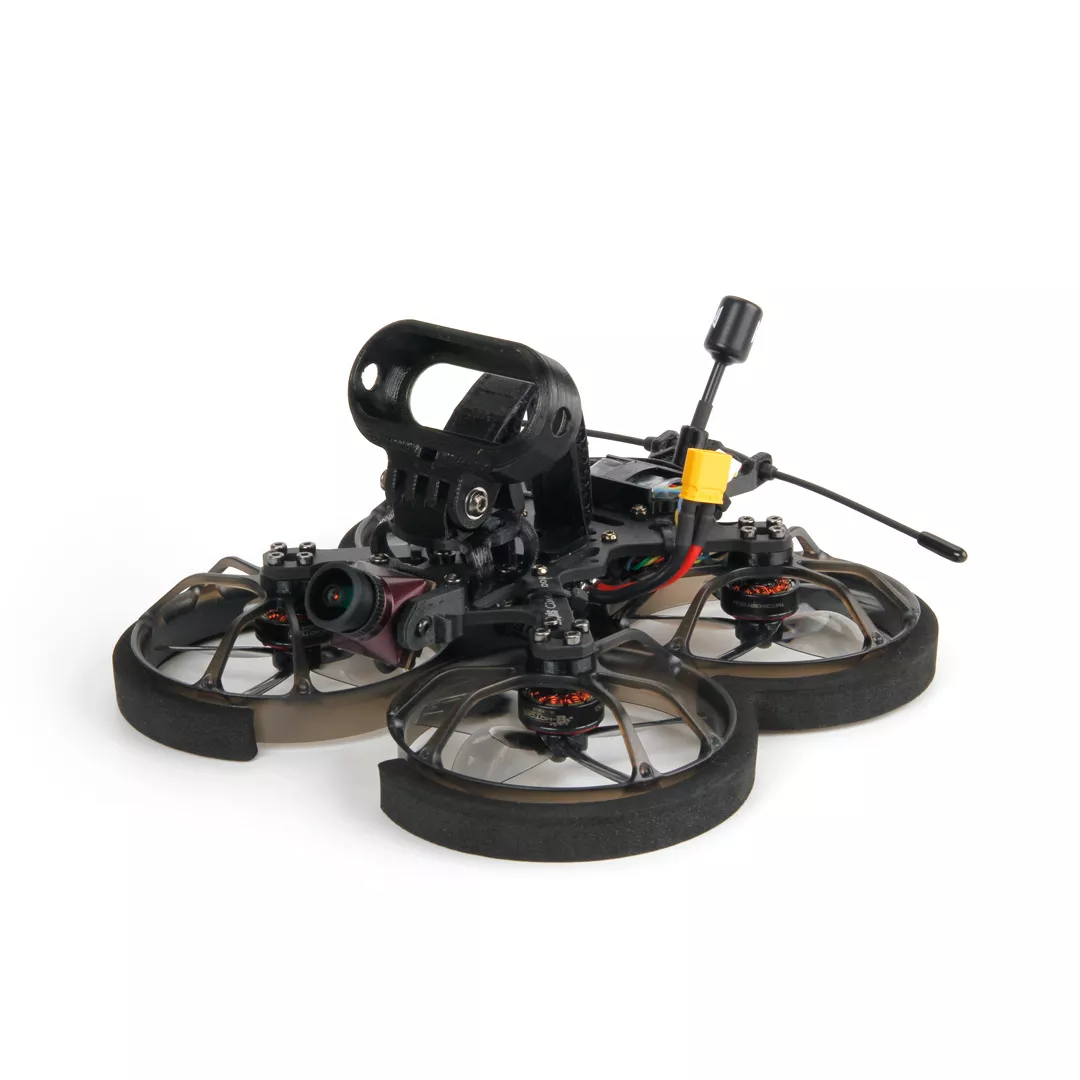

- 1x Kopis cinewhoop2.5” FPV racing drone
- 1x Insta360 GO 2 camera mount
- 1x Naked GoPro/SMO4k camera mount
- 2x Propeller guard
