Updated:
1.Digital HD Camera:Caddx Polar Vista Kit starlight Digital HD FPV system
2.ESC:Tekko32 F4 4in1 mini 45A ESC
3.Motors:F1507 KV3800
4.Propeller:T3140
Features
- Frame: 3k carbon fiber
- Bottom Plate: 2mm
- ARM: 3mm
- Flight Controller: Kakute F7 mini V3
- ESC: Tekko32 F4 4in1 mini 45A ESC
- Motor: F1507 KV3800
- Propeller: T3140
- Buzzer included.
- Wheelbase: 180mm
- Battery plug: XT30
- Recommend battery: 650~850mAh 4s
Analog VTx version
- 5.8G VTx: Atlatl HV Micro
- Foxeer Lollipop 3 2.5Dbi Stubby Omni FPV Antenna
- FPV camera: 1200TVL Foxeer Micro Razer FPV Camera
- Weight:166g(without battery)
CADDX FPV version
- VTx: Caddx Polar Vista Kit starlight Digital HD FPV system
- Weight:173g(without battery)
Specifications
| Flight Controller: Kakute F7 mini V3 |
- MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 5hardware UARTS (UART1,2,3,4,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 1.0A max
- 3.3V Power Out: 0.2A max
- Dimensions: 30x30mm
- Mounting Holes: Standard 20mm square to center of holes
- Weight: 4g
|
ESC:
Tekko32 F4 4in1 45A mini |
- F4 MCU with BLHELI32 firmware
- Maximum PWM output upto 96K (default 48K)
- Amperage meter scale ratio has been adjusted to 168.
- PWM input, TLM supported
- Voltage output (VBAT)
- NO output BEC
- Supports oneshot / Multishot / Dshot PWM
- Supports damped light
- Supports 3-6S lipo input
- Ext. cap needed for 6s (1000uf 35v for 6s usage.)
- Mounting holes: 20x20mm(M3)
- Size:30 x 39 mm
- Weight: 7.2g
|
Analog version：
5.8G VTx: Atlatl HV Micor |
- Output Power: 0.5mW (pit mode), 25mW, 200mW, 500mW, 800mW
- Audio: 6.5 MHz Mono
- Protocol: smart audio2.0
- Antenna Connector: MMCX
- Input Voltage: 7 to 28 volts (2-6S LiPo)
- Dimensions: 30x26mm
- Mounting Holes: 20x20mm (M3)
- Weight: 3.6g
|
HD version：
Caddx Polar Vista Kit starlight Digital HD FPV system |
- Dimensions: Module: 30.45 x 29 x 13mm
- Weight: 29g (inc. camera); Module: 19g
- Antenna Connector: u.FL
- Operating Frequency: 5.725-5.85GHz
- Transmitter Power (EIRP)
- FCC/SRRC/MIC: <20dBm; CE: <14dBm
- I/O Interface: USB-C, IPEX, 3-in-1 Port
- Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
- High-Quality Mode (720p 60fps): 30-40ms
- Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
- Input Power: 7.4-26.4vCamera Specifications:
- Color: Silver, Brown
- Sensor: 1/1.8″ Starlight CMOS
- Min. Illumination: 0.00003Lux
- Lens: F/1.6 & 8 Mega
- Shutter: Rolling shutter
- ISO: 100-25600
- FOV: 162°(D);138°(H);75°(V)
- Aspect Ratio: 16:9
|
Includes:
Includes:

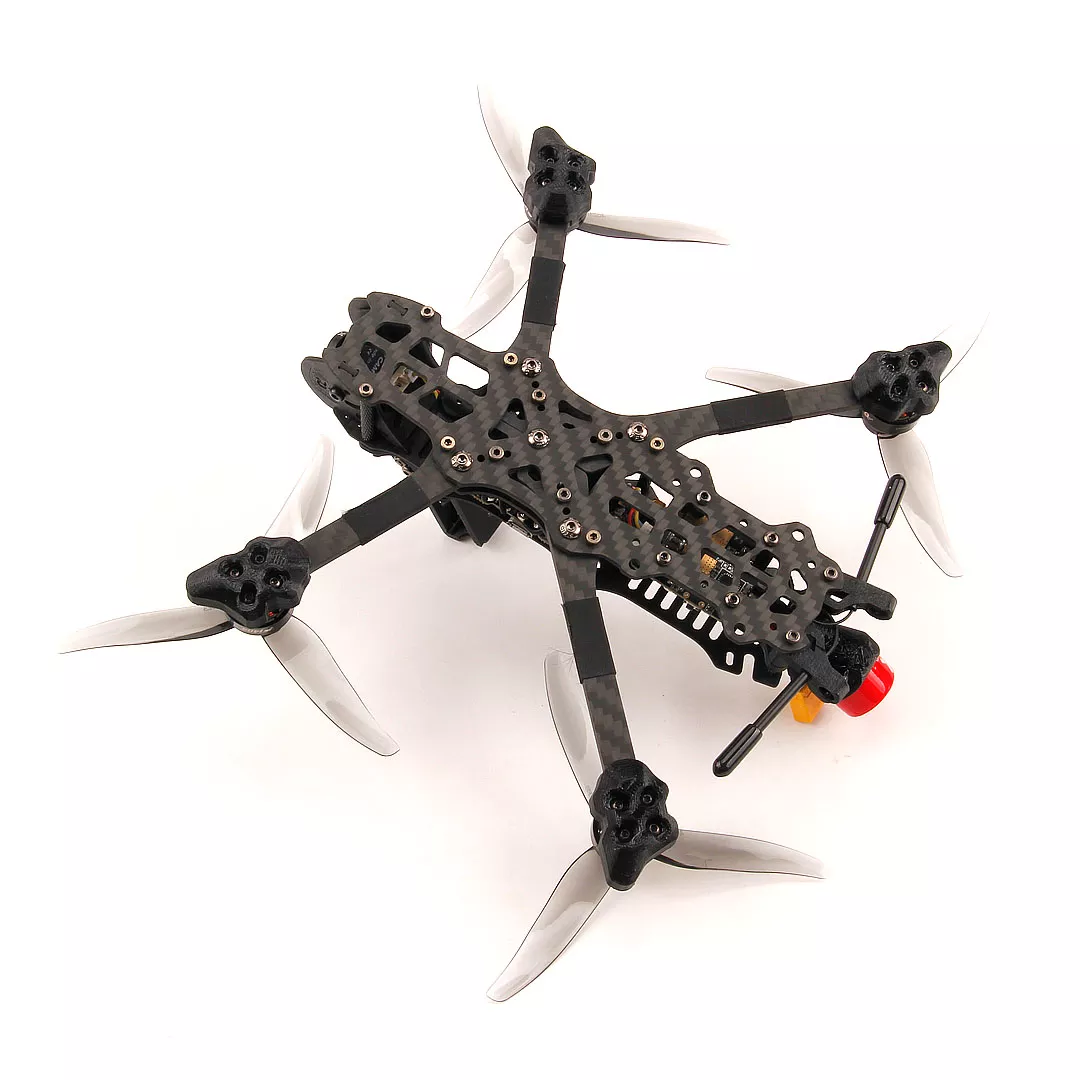

- 1x Kopis FPV racing drone
- 8x T3140 Propeller
- 1x Battery strap(installed)
- 1x Naked GoPro camera mount
