Updated:
1.FC:Kakute H7 BT
2.Digital HD Camera(HD version):Caddx Polar Vista Kit starlight Digital HD FPV system
3.ESC:Tekko32 F4 4in1 mini 45A ESC
Specifications
FC: Kakute H7 BT
- MCU – STM32H743 32-bit processor running at 480 MHz
- IMU – MPU6000
- Barometer – BMP280
- OSD – AT7456E
- Onboard Bluetooth chip – ESP32-C3
- SpeedyBee IOS & Android App Compatible
- Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).
- 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
- 9x PWM Outputs (8 Motor Output, 1 LED)
- 2x JST-SH1.0_8pin port (4in1 ESCs, x8/Octocopter compatible)
- 1x JST-GH1.5_6pin port (For HD System like Caddx Vista & Air Unit)
- Battery input voltage: 7V to 42V
- BEC 5V 2A Cont.
- BEC 9V 1.5A Cont.
- Mounting – 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
- Dimension – 35x35mm
- Weight – 8g
ESC: Tekko32 F4 4in1 45A mini ESC
- F4 MCU with BLHELI32 firmware
- Maximum PWM output upto 96K (default 48K)
- Amperage meter scale ratio has been adjusted to 168.
- PWM input, TLM supported
- Voltage output (VBAT)
- NO output BEC
- Supports oneshot / Multishot / Dshot PWM
- Supports damped light
- Supports 3-6S lipo input
- Ext. cap needed for 6s (1000uf 35v for 6s usage.)
- Mounting holes: 20x20mm(M3)
- Size:30 x 39 mm
- Weight: 7.2g
Kopis mini 3″(HD version) #30114,#30127
Features
-
Frame:3mm 3k carbon fiber
-
Flight Controller:Kakute H7
-
ESC:Tekko32 F4 4in1 45A mini ESC
-
VTx:Caddx Polar Vista Kit starlight Digital HD FPV system(Optional)
-
Motor：F1507 KV3800(Standard)
-
Propeller：T3140
-
Buzzer included.
-
Battery plug: XT30
-
Wheelbase: 148.6mm
-
Weight:198g（included CADDX Vista）
-
Recommend battery: 650mah~1300mah 4s
Includes:
-
1x Kopis mini FPV racing drone
-
Caddx Vista Digital HD System for DJI HD FPV
-
4x T3140 Propeller
-
1x Carying case
-
1x Battery strap(installed)

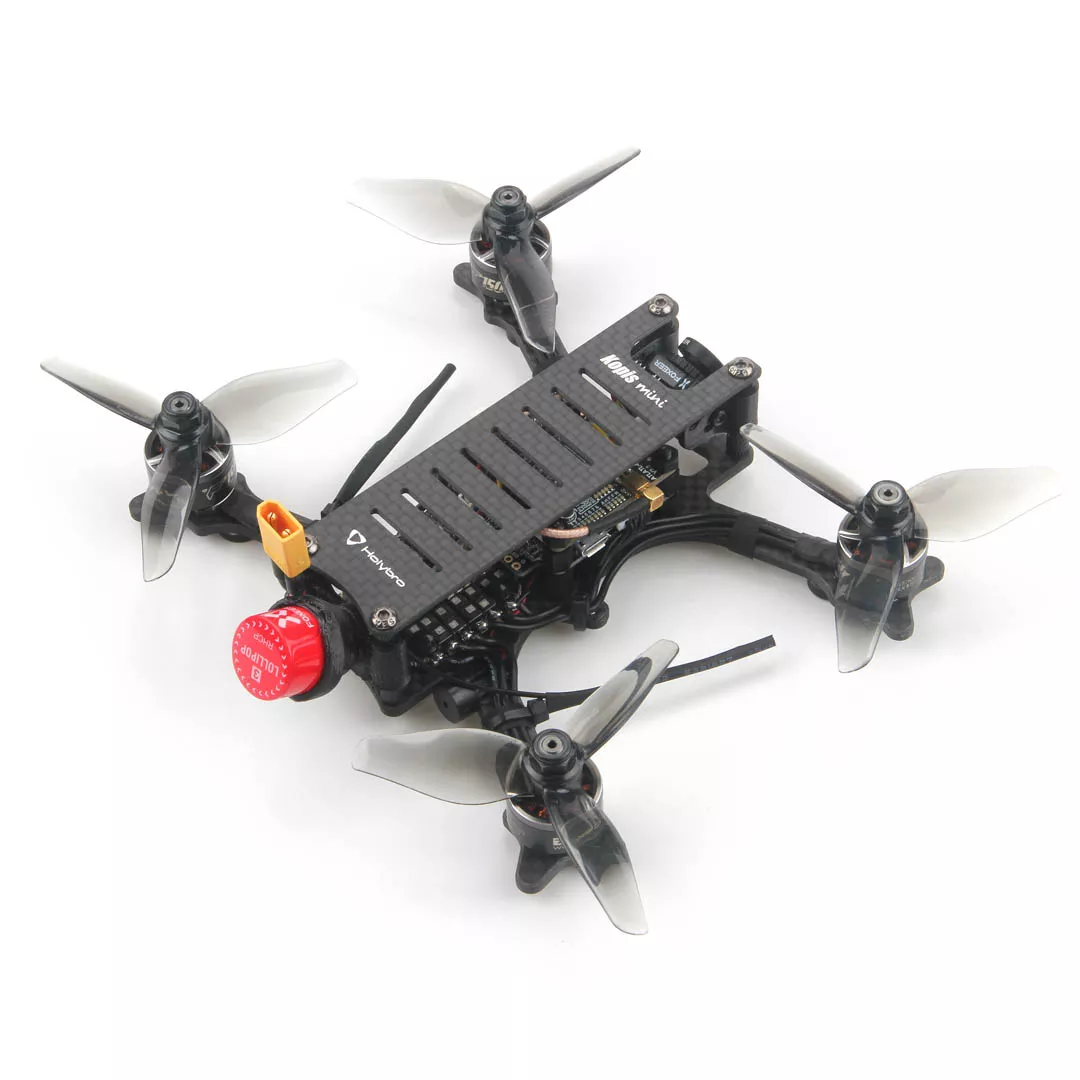

Kopis mini 3″(Analog version) #30067,#30068
Features
-
Frame:3mm 3k carbon fiber
-
Flight Controller:Kakute H7
-
ESC:Tekko32 F4 4in1 45A mini ESC
-
VTx:Atlatl HV V2
-
Motor:F1507 KV3800(Standard)
-
Propeller:T3140
-
FPV camera:1200TVL Foxeer Micro Razer FPV Camera
-
Adjustable camera uptilt from 0 degrees to 90 degrees
-
Buzzer included.
-
Battery plug: XT30
-
Wheelbase: 148.6mm
-
Weight:173g
-
Recommend battery: 650mah~1300mah 4s
Includes:
-
1x Kopis mini FPV racing drone
-
4x T3140 Propeller
-
1x Protective Case Mount for GoPro Hero5
-
1x Battery strap(installed)
Please note: Starting from April 12th, 2022, all Kopis BNF will no longer include the Kopis Carry case.
Manual:
Holybro_Kopis-mini(Analog version)_Manual
Holybro_Kopis-mini(HD version)_Manual
3D Print:
Holybro_Kopis-mini_3D_Print.rar
Setting:
Kopis-mini_3inch(Analog VTx version)DUMP
Kopis-mini_3inch(HD version)DUM
