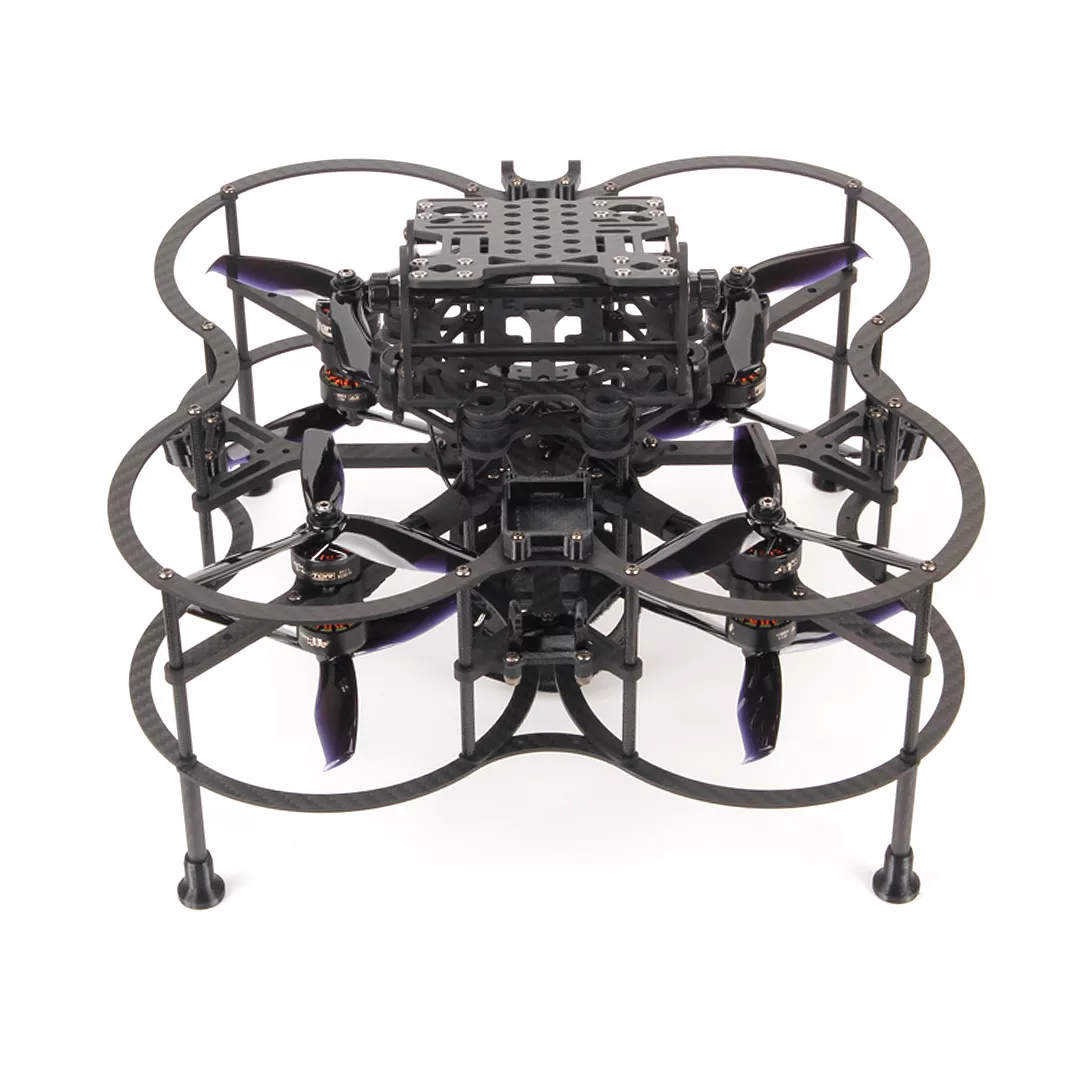

The Holybro Kopis X8 Cinelifter 5” comes in both Ducted and Caged version. This 5” compact design can easily lift a cinematic camera like Komodo, Zcam, BMPCC, GH5, etc, stable flight while maintaining great maneuverability. Great for both entry level pilot getting into Cinelifter or professional drone cinematographers looking for a rig for stable cinematic footage in tight spaces.
It uses x8 5” props with excellent flight efficiency in cruising speeds with smooth and predictable characteristics, minimal throttle modulation is needed for altitude control. The ducts can be easily removed and changed to carbon fiber caged with ease, landing gear can be removed, and ultimate customizability. It is perfect for both indoor flying and outdoor cruising.
Feature:
- 5” compact design with injection molded ducts
- Perfect for indoor flying near people and outdoor cursing
- Easily Swappable duct to cage design (purchase separately)
- Ducted design provides smooth flight & excellent flight efficiency
- Caged design provided greater maneuverability, especially in winy situation
Frame Kit Contents:
- Carbon Fiber Frame
- 3D printed parts
- Battery & Cinema Camera Velcro Straps
- 2x MMCX to SMA Female 20cm Antenna Extension Cable For Air Unit (Added on shippment after March 25th 2022)
ARF Kit Contents:
- Frame Kit
- Motor: T-Motor F60 PRO-IV KV1750 (8pc)
- Propeller: Gemfan Hulkie 5055S-3
- 2x MMCX to SMA Female 20cm Antenna Extension Cable For Air Unit (Added on shippment after March 25th 2022)
Full Kit Contents:
- Frame Kit
- Motor: T-Motor F60 PRO-IV KV1750 (8pc)
- Propeller: Gemfan Hulkie 5055S-3
- Flight Controller: Kakute H7
- ESC: 2x Tekko32 F4 4in1 50A ESC
- 2x MMCX to SMA Female 20cm Antenna Extension Cable For Air Unit (Added on shippment after March 25th 2022)
Specification:
Camera Payload: Up to 1.5 KG Camera Payload
Flight time: ~4 min with 1.5 KG Payload & 5000mAh 6S battery (0.8 KG)
Dimension: 31.5 x 31.5cm
Frame Kit Weight:
- Caged Version: 570g
- Ducted Version: 716g
