• Product Details

Specifications:

Model: MK32

Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
– QGroundControl
– SIYI FPV
Image Transmission Compatible Windows GCS:
– QGroundControl

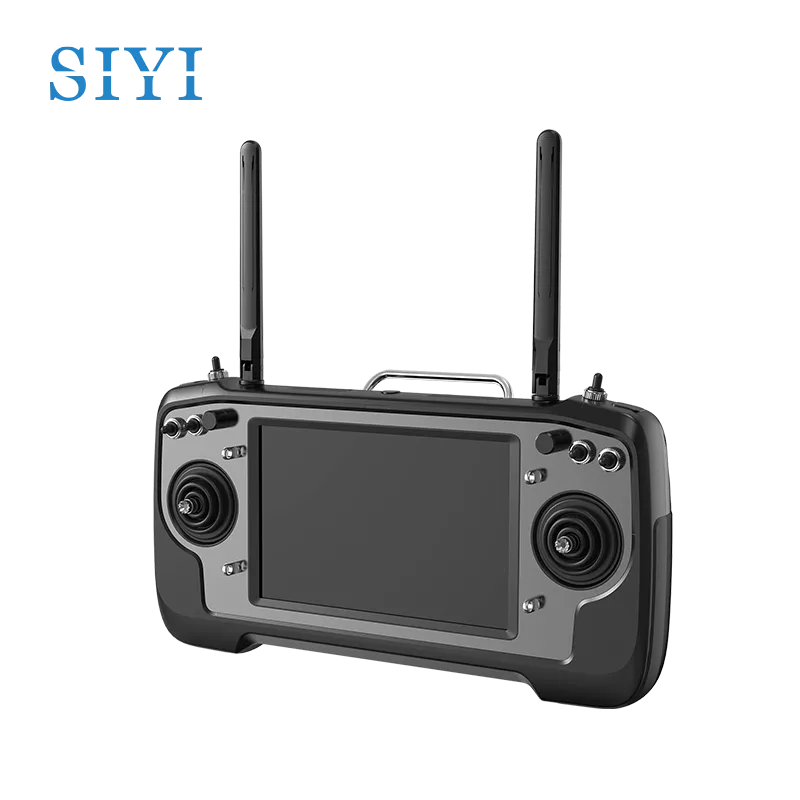

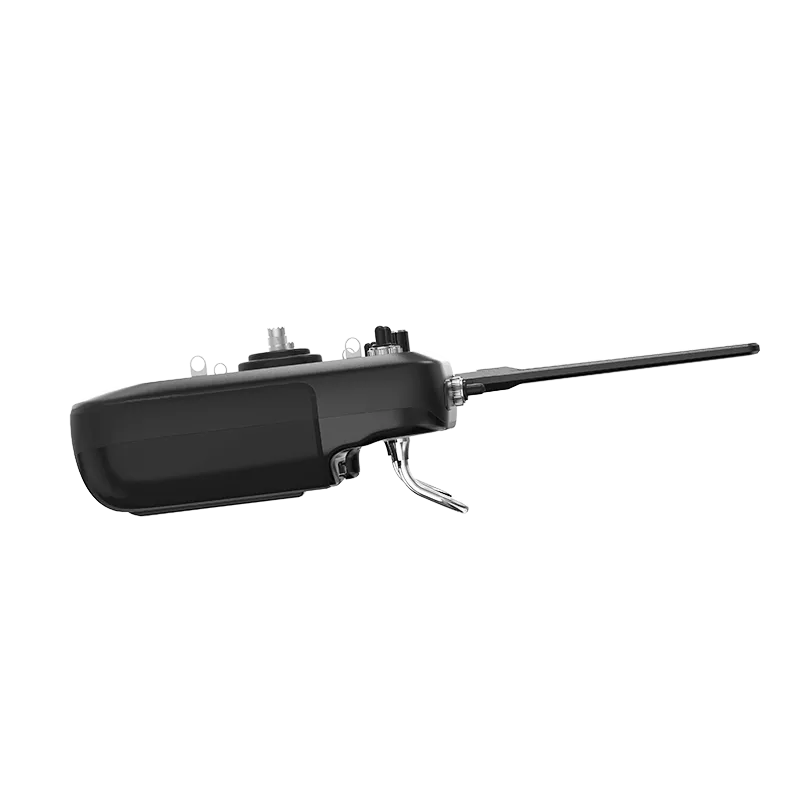

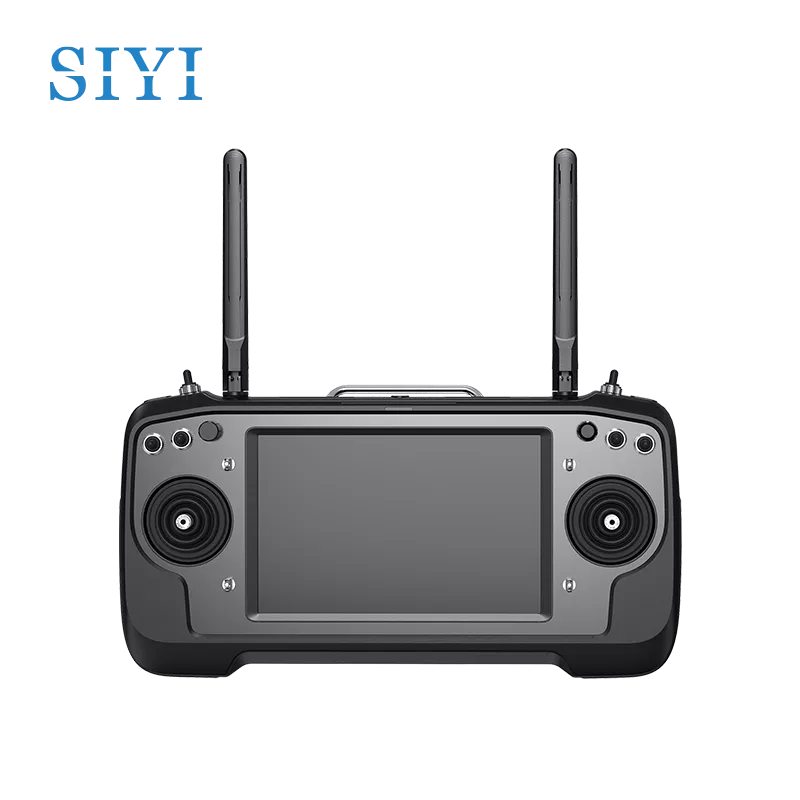

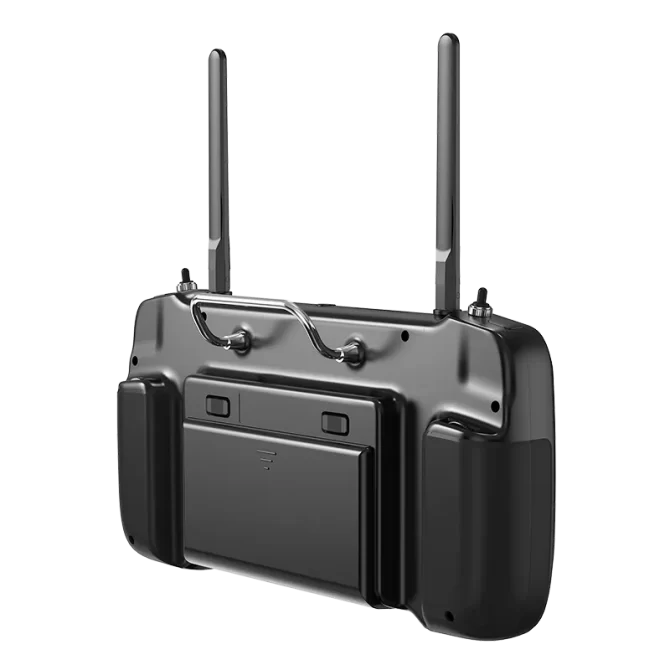

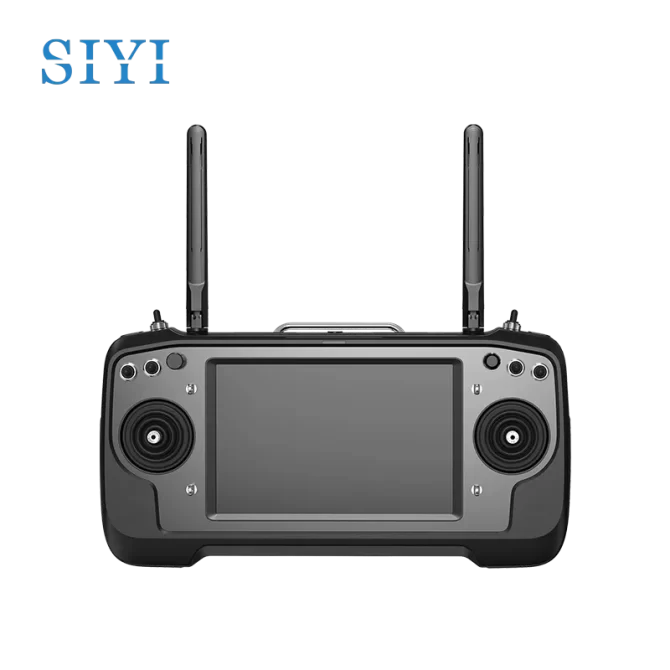

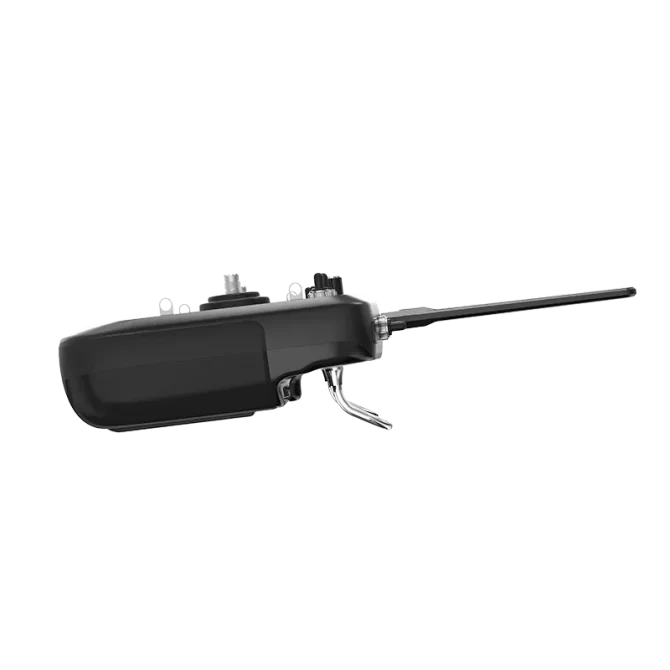

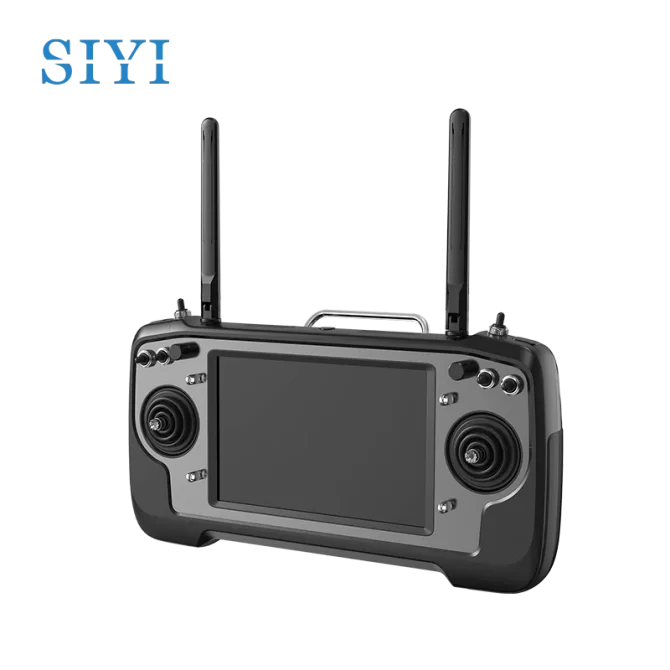

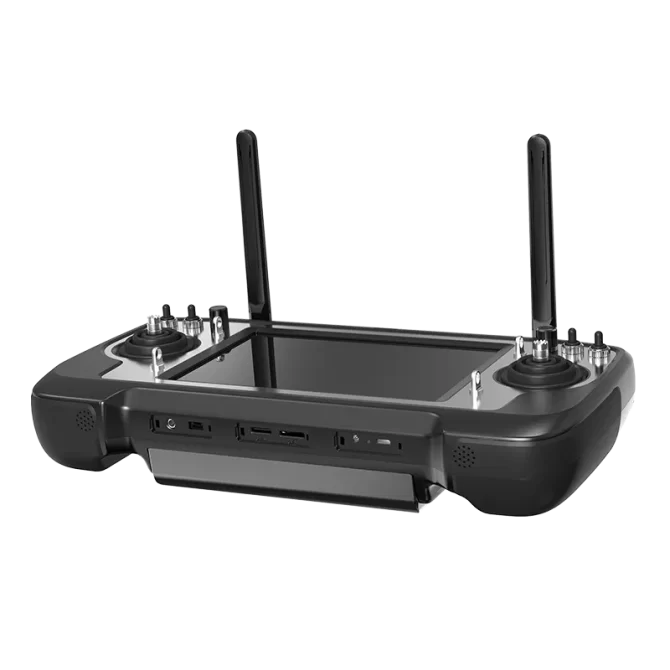

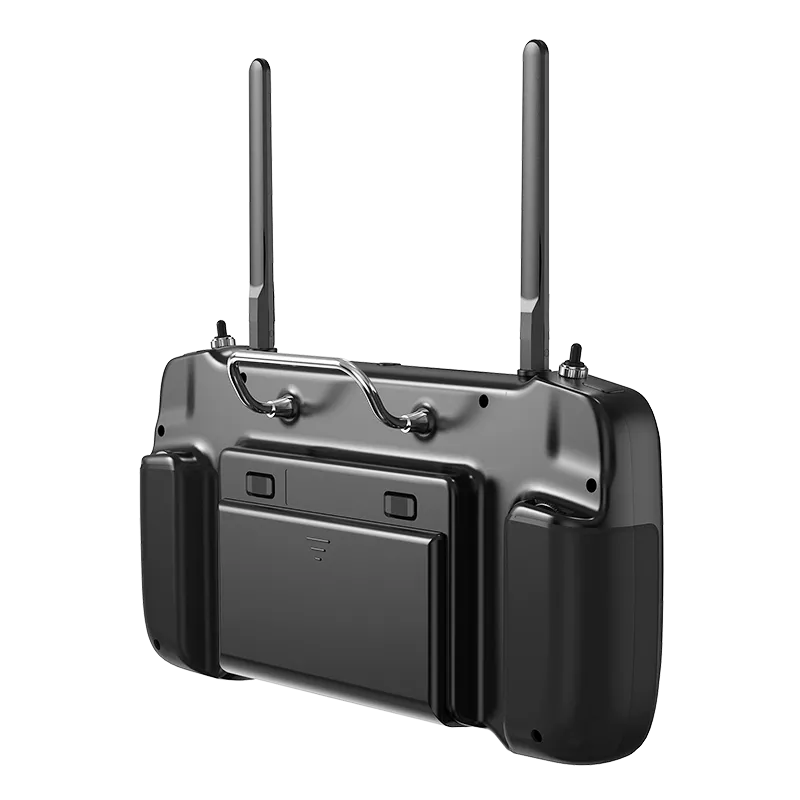

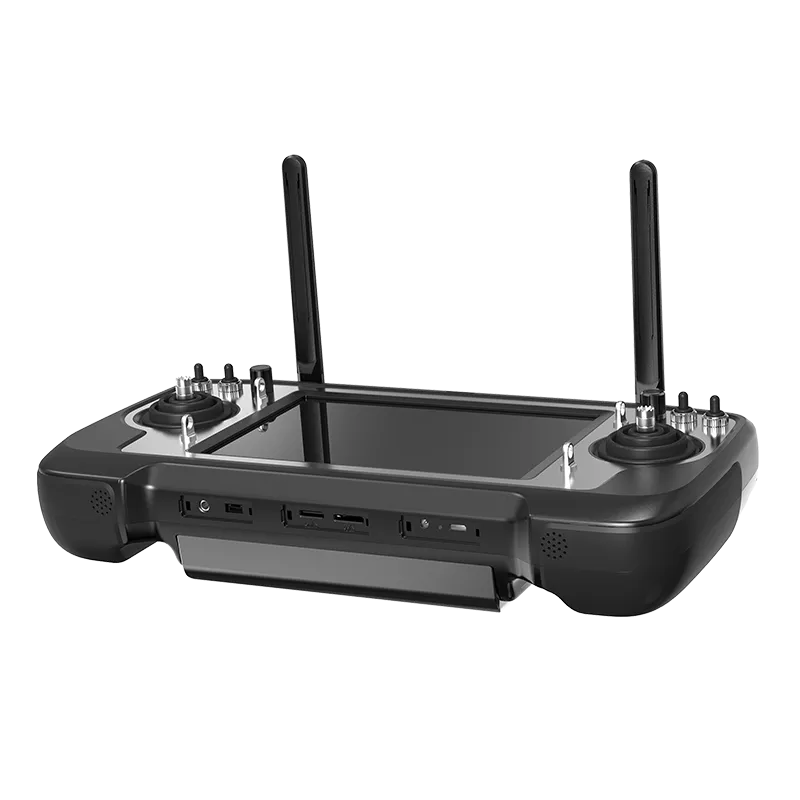

Ground Station

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours

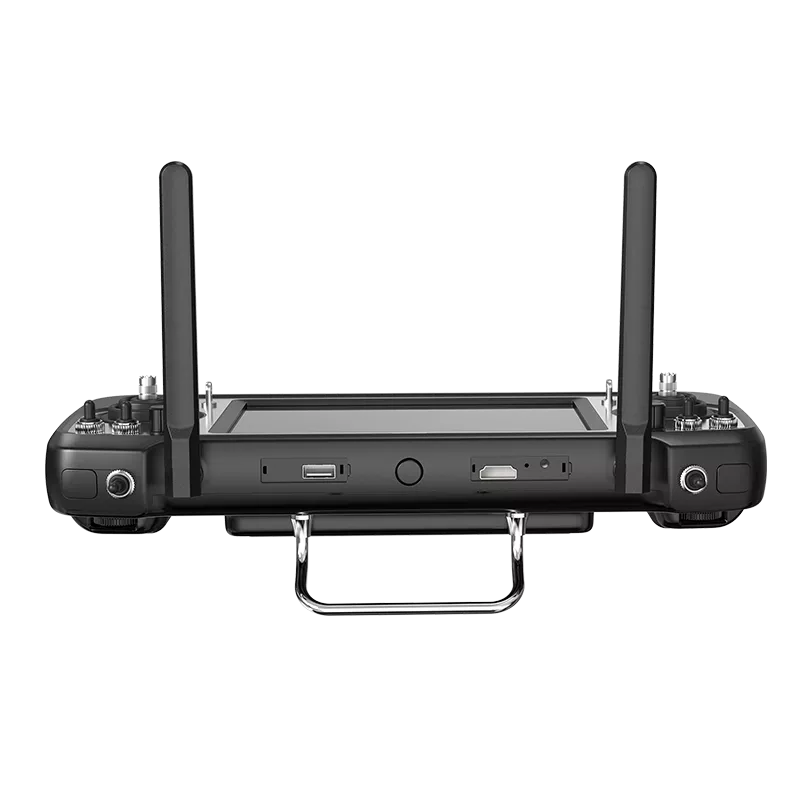

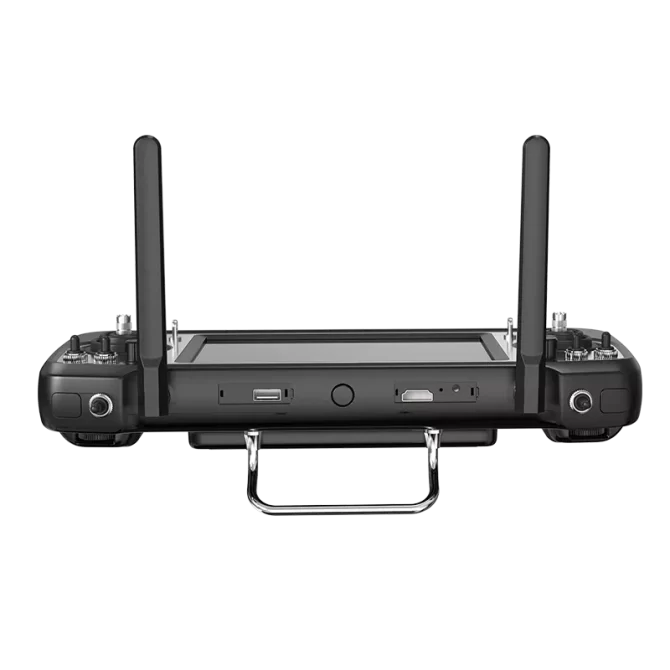

Interface & Ports:
– Video Output: Standard HDMI
– External Device: USB-A
– MIC Input: Top Audio Port
– Charging: Type-C
– Firmware Upgrade: Type-C
– File Transfer: Type-C / USB-A
– 4G Cellular Network: SIM Card Slot
– External Storage: TF Card Slot / USB-A
– Communication: LAN (Ethernet)
– RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50℃

Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
– SBUS: 3-Pin
– Datalink (to FC): UART 4-Pin
– PWM Channel 1 to 5: 6-Pin
– Video Input: Ethernet 8-Pin
– Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

Air Unit HDMI Input Converter

(Optional or Packed with HDMI Combo)
Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W
TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB
Working Temperature: -10 to 50℃
Dimensions: 42 x 41 x 11 mm
Weight: 26 g

Optional items

MK32 Standard Combo, MK32 HDMI Combo, MK32 Dual Combo
