Nano M8 5883 GPS Module

$31.35

(In stock)

This lightweight micro GPS is a cost-effective product for those people who need to run iNav on their FPV quads. • Dimensions:25x20x8mm • Weight:7.8g

In stock

SKU:12023 Category:GPS Systems

Description
Additional information

- - Product Details
  Features
  • UBX-M8030 high performance GPS/GNSS Chips:
  • Over 2 million effective correlators
  • 72 channels in Search mode
  • Cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity
  • Up to 10 Hz navigation update rate
  • Supports GPS, QZSS, GLONASS , BDS and is ready for Galileo
  • Supports AGPS
  • Integrated TCXO,LNA,SAW,RTC
  • Compact size (φ23.88mm x19.98mmx8.80mm±0.5mm ) suitable for space-sensitive application
  • Weight 7.8 grams without TPU Protective Case Shell
  • Support standard NMEA 0183,UBX
  • This module is equipped with QMC5883 compassPerformance

  A1 All satellites at -130 dBm
  A2 CEP, 50%, 24 hours static, -130 dBm, > 6 SVs
  A3 Assuming Airborne < 4g platform

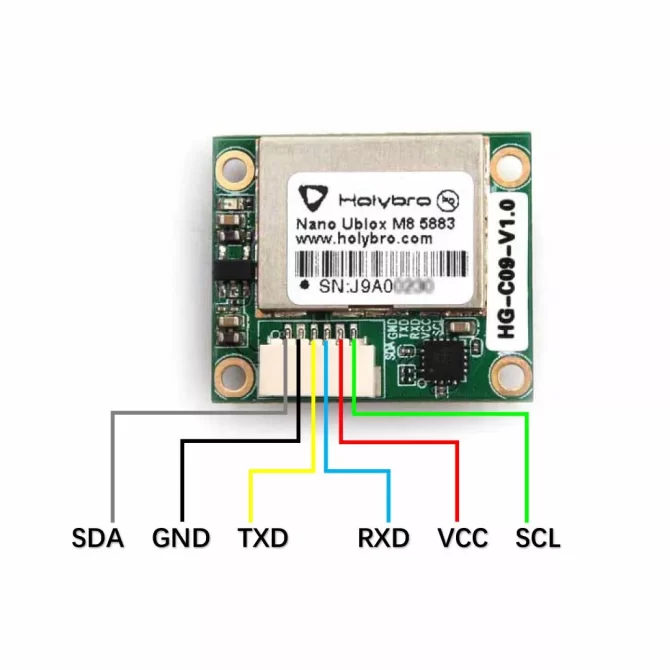

  PINMAP

  Package Included:

  – Nano Ublox M8 5883 GPS Module *1
  – JST 6P Cable *1

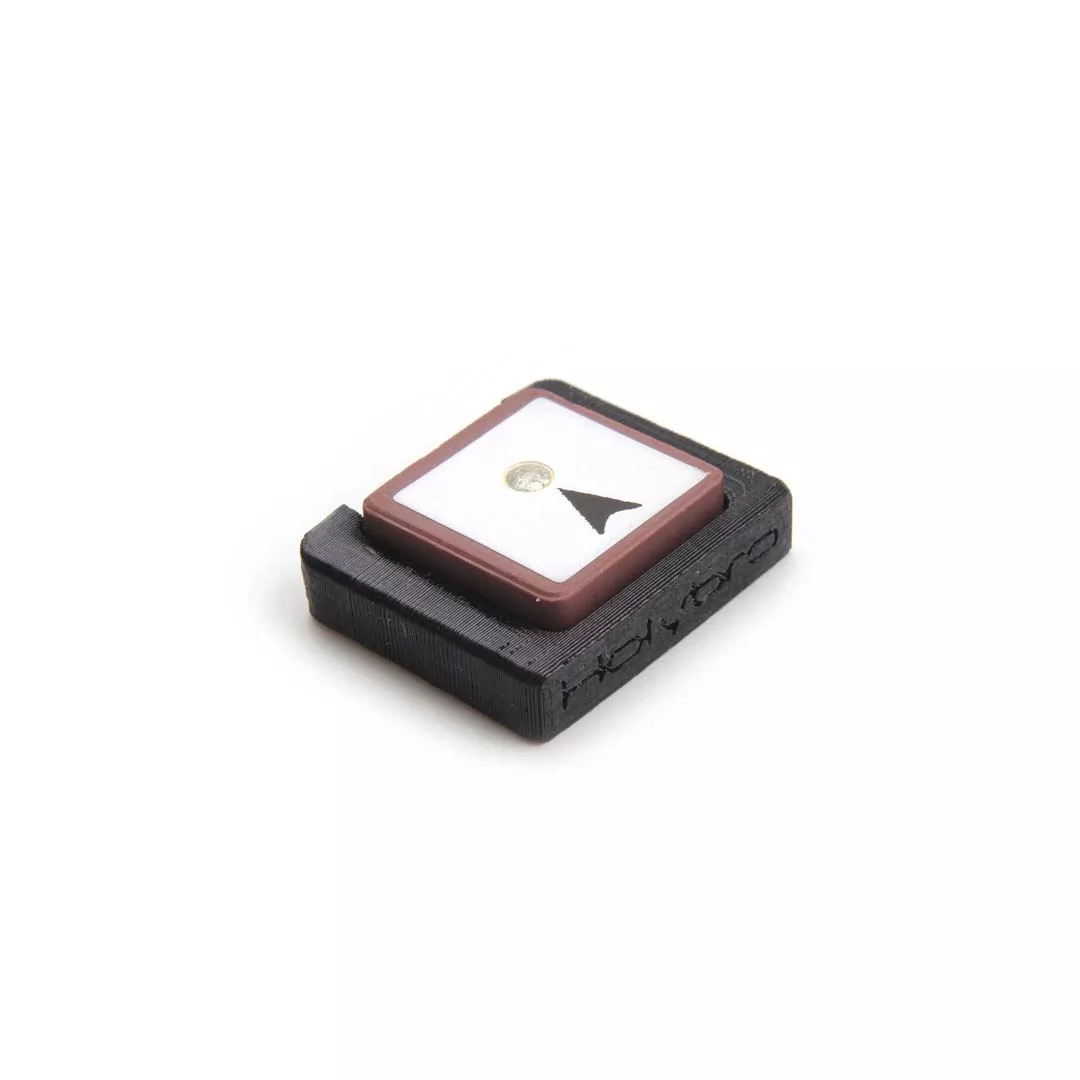

  – TPU Protective Case Shell *1

  Download:

  Nano_Ublox_M8_5883_GPS_Datasheet

  3D Print:

  TPU Mount_Nano Ublox M8 5883 GPS Module

Optional items	Holybro M9N GPS, Holybro M9N GPS for Pix32, Holybro M9N 2nd GPS
