The Ripper 1404 is an ultra-lightweight & high-performance motor with excellent efficiency, made for all 2.5”- 4” lightweight freestyle, cinematic, and long-range drones with 3S or 4S setup.

Specifications

  • Motor Dimension: φ18.2×17.7mm
  • Weight (with wires): 9g
  • Battery: 3-4S
  • Mounting Pattern: M2 9x9mm
  • Bearing Shaft Dimension: 2mm
  • Prop Mounting Shaft Diameter: 1.5mm
  • 75mm 26AWG silicone wire
  • No-load Current (10V): 0.5A
  • Internal Resistance: 0.228Ω

Dimension

Packaging

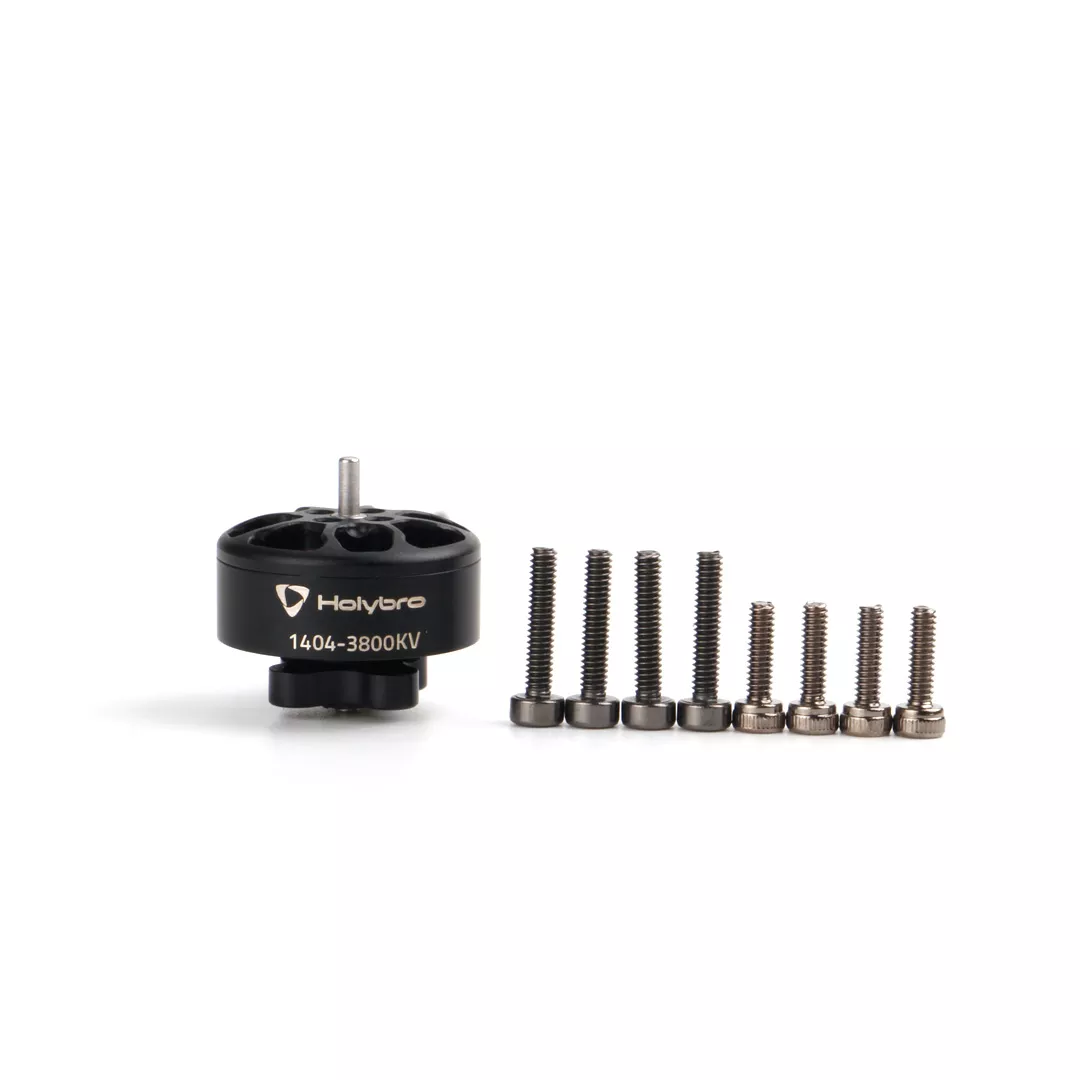

1x Ripper 1404 3800KV Motor

4x M2*7mm Screws

4x M2*10mm Screws

Quantity

1 PCS, 4 PCS
