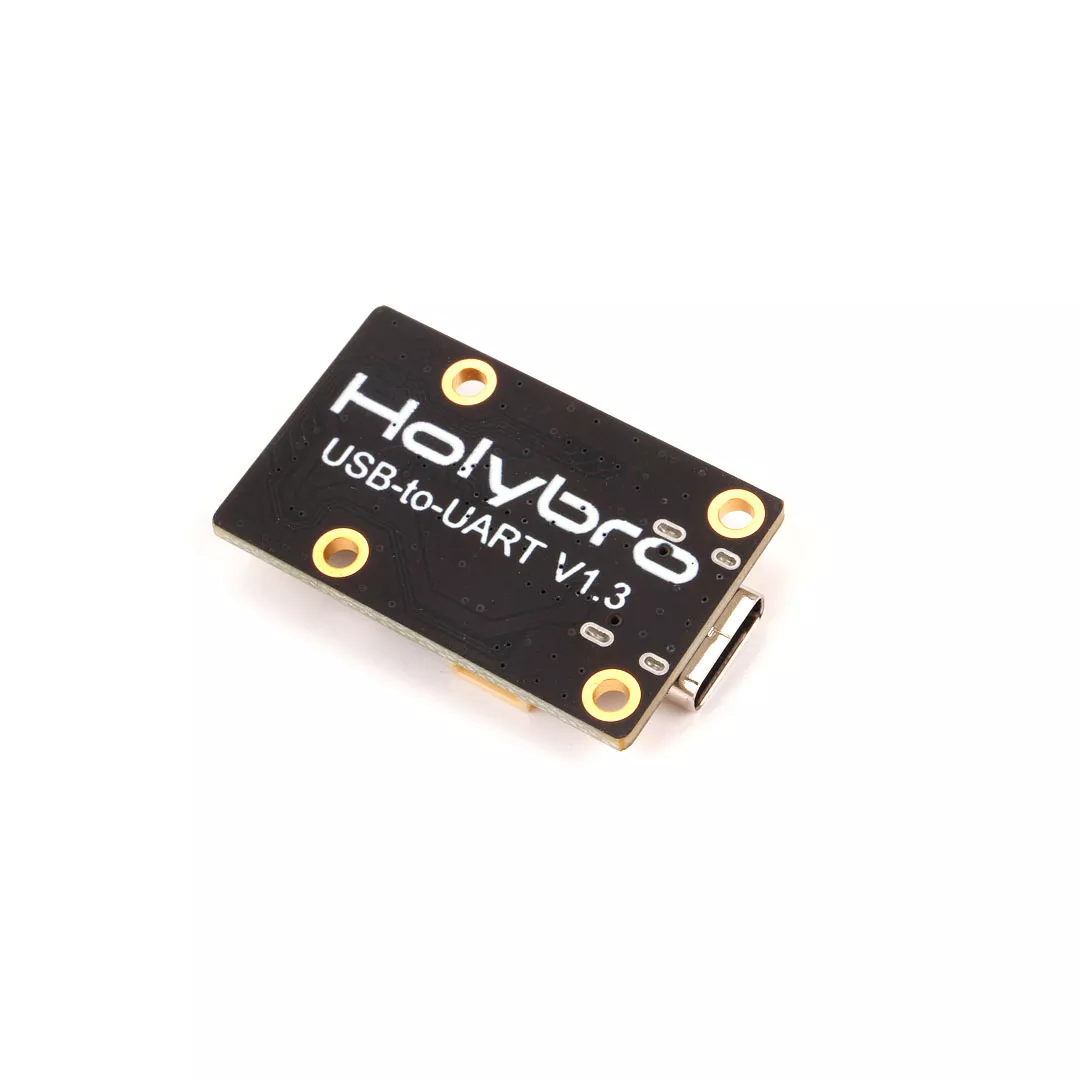

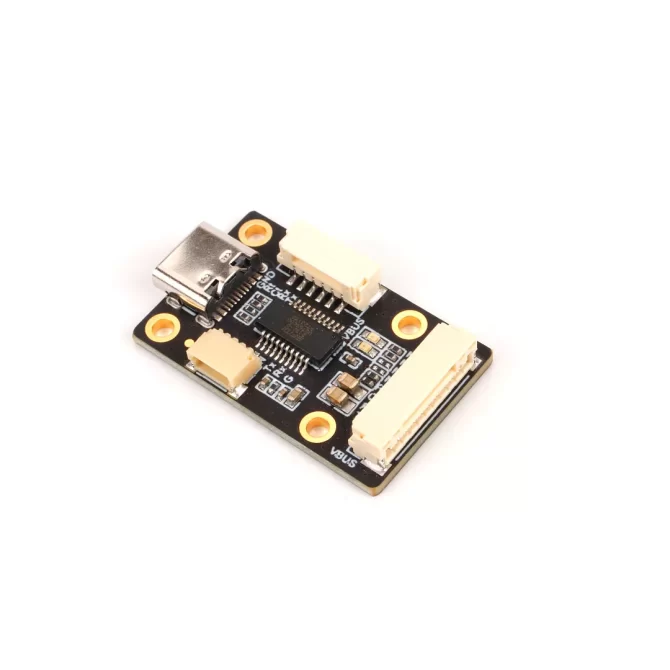

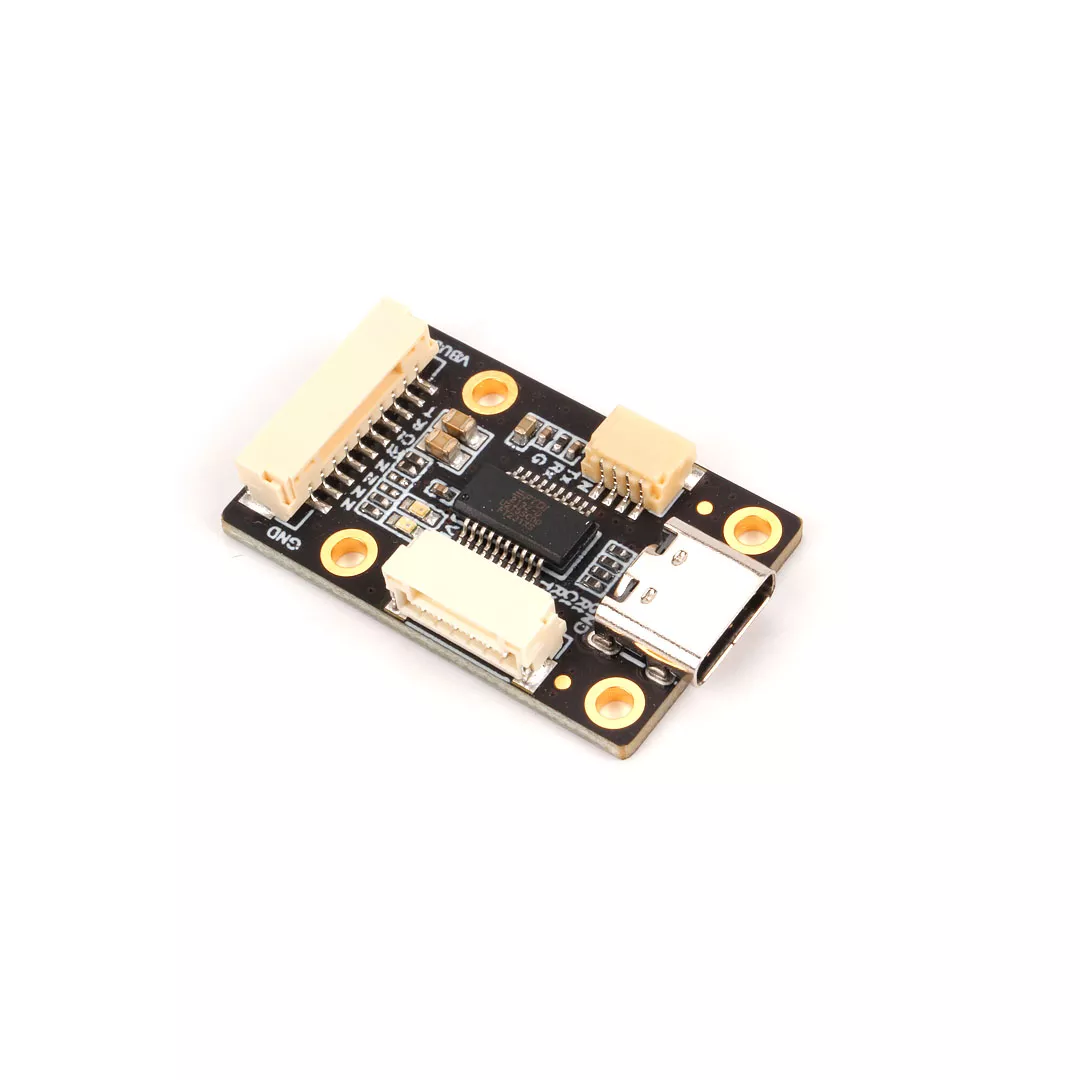

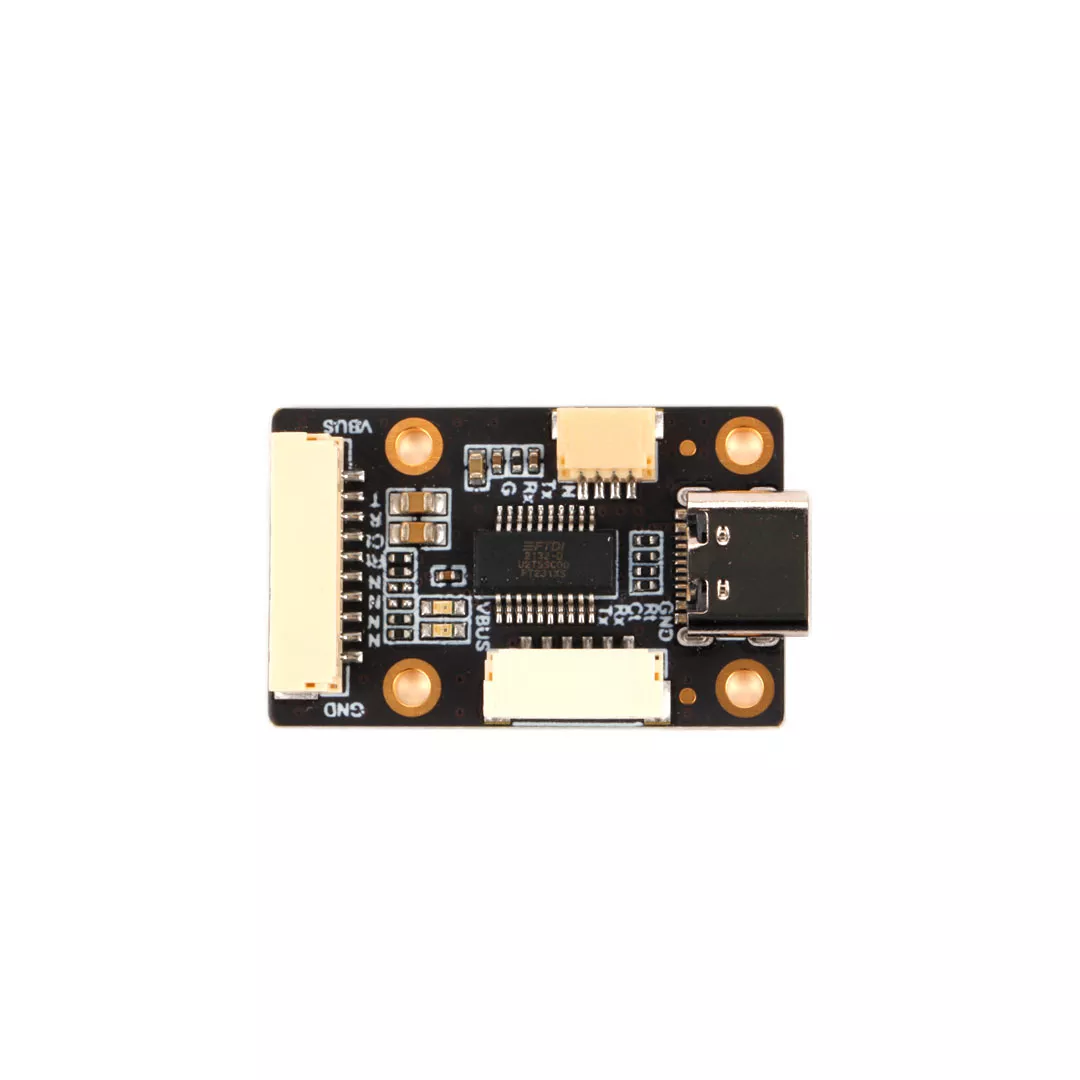

Product Details
The GPS UART to USB Converter can be use with:
– H-RTK M8P Rover Lite
– H-RTK M8P Rover Lite 2nd GPS
– H-RTK F9P Rover Lite
– H-RTK F9P Rover Lite 2nd GPS
– M8N (Pixhawk4) GPS
– M8N (Pixhawk4) 2nd GPS
– M9N GPS
– M9N 2nd GPS
– Microhard P900 Radio
Specifications:
FT231X USB interface conversion chip.
On-board power indicator, status indicator.
Interface Type: type-c USB & GH 10PIN& GH 6PIN& SH 6PIN Port
Dimensions: 20*32mm
Weight: 3.4g
PINMAP:
Package included:
UART to USB Converter board *1
Type-c USB cable *1
FTDI CHIP Info:
https://ftdichip.com/products/ft231xs/
https://ftdichip.com/products/ft230xs/ (Previous Version)
