• Product Details

Overall

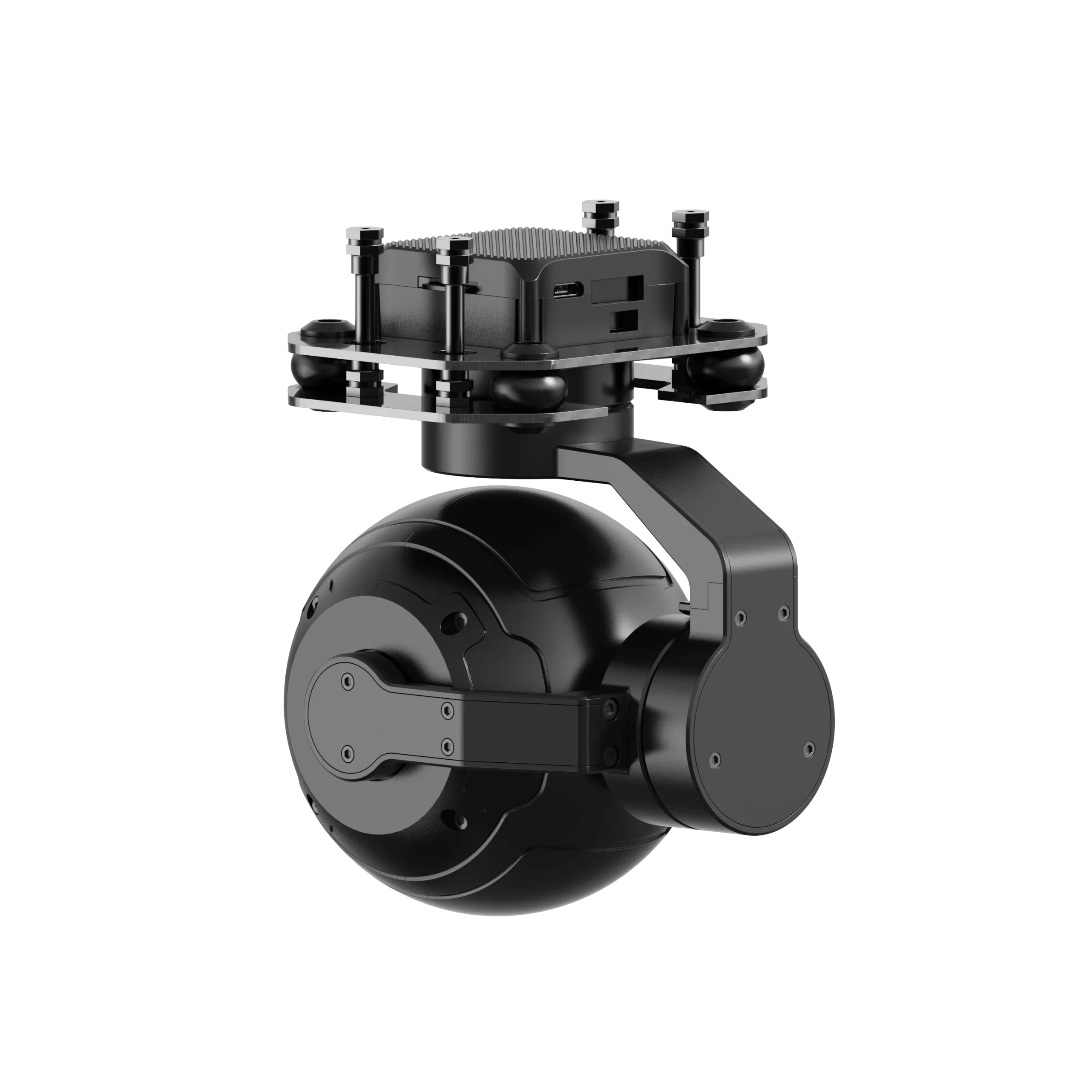

Model: ZR10
Video Output Port: Ethernet
Control Signal Input Port: S.Bus / PPM / UART / UDP
Working Voltage: 11 to 25.2 V
Power Consumption: 3 W
Working Temperature: -10 ~ 50 ℃
Waterproof Level: IP4X
Dimension: 121*101*78 mm
Weight: 381 g

Gimbal

Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Mechanical Pitch Angle: -135° to +45°
Controllable Yaw Angle: -45° to +45°
Mechanical Yaw Angle: -90° to +90°

Camera

Lens: 10X Optical Zoom (30X Hybrid Zoom)
Focal Length: 5.15±5% to 47.38±5% mm
Minimum Focus Distance: 200 mm
Image Sensor: 1/2.7”-inch, 4 MP effective resoultion
Aperture: F1.8 to F2.5
FOV: Diagonal 79.5°, Horizontal 71.5°
TF Recording Resolution: 2K (2560*1440) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Image Format: JPEG
Video Format: MP4 (Recorded in H265, *auto converted to MP4 after restart)
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering

Downloads

ZR10 User Manual en v1.0.pdf

Optional items

ZR10 Gimbal Camera, ZR10+MK15 Enterprise Standard Combo, ZR10+HM30-Fly More Combo
